What indicators are available with Order Flow on FYERS?

What indicators are available with Order Flow on FYERS?

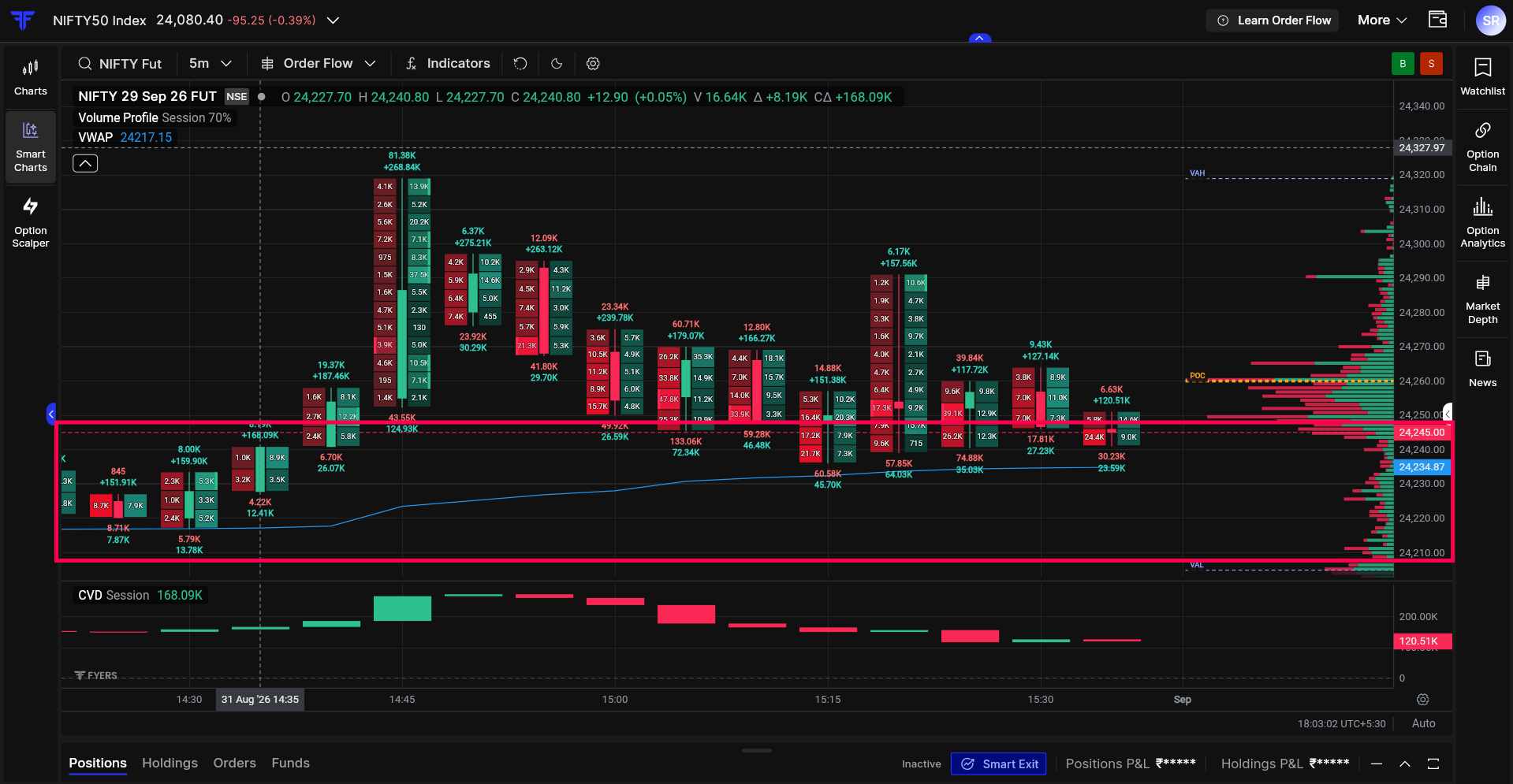

When you open the Order Flow chart on FYERS Web, three indicators are displayed by default: Volume Profile, Volume Weighted Average Price (VWAP), and Cumulative Volume Delta (CVD). These indicators provide additional information about volume and price activity during the trading session.


Accessing Order Flow indicators

To access Order Flow on FYERS Web:

  1. Log in to FYERS Web.
  2. Click Charts.
  3. Select Smart Chart.
  4. The Order Flow chart will open.

Volume Profile, Volume Weighted Average Price, and Cumulative Volume Delta are displayed by default along with the Order Flow chart. You can also add other available indicators, such as Exponential Moving Average (EMA), Relative Strength Index (RSI), and Volume, from the Indicators menu based on your preference.

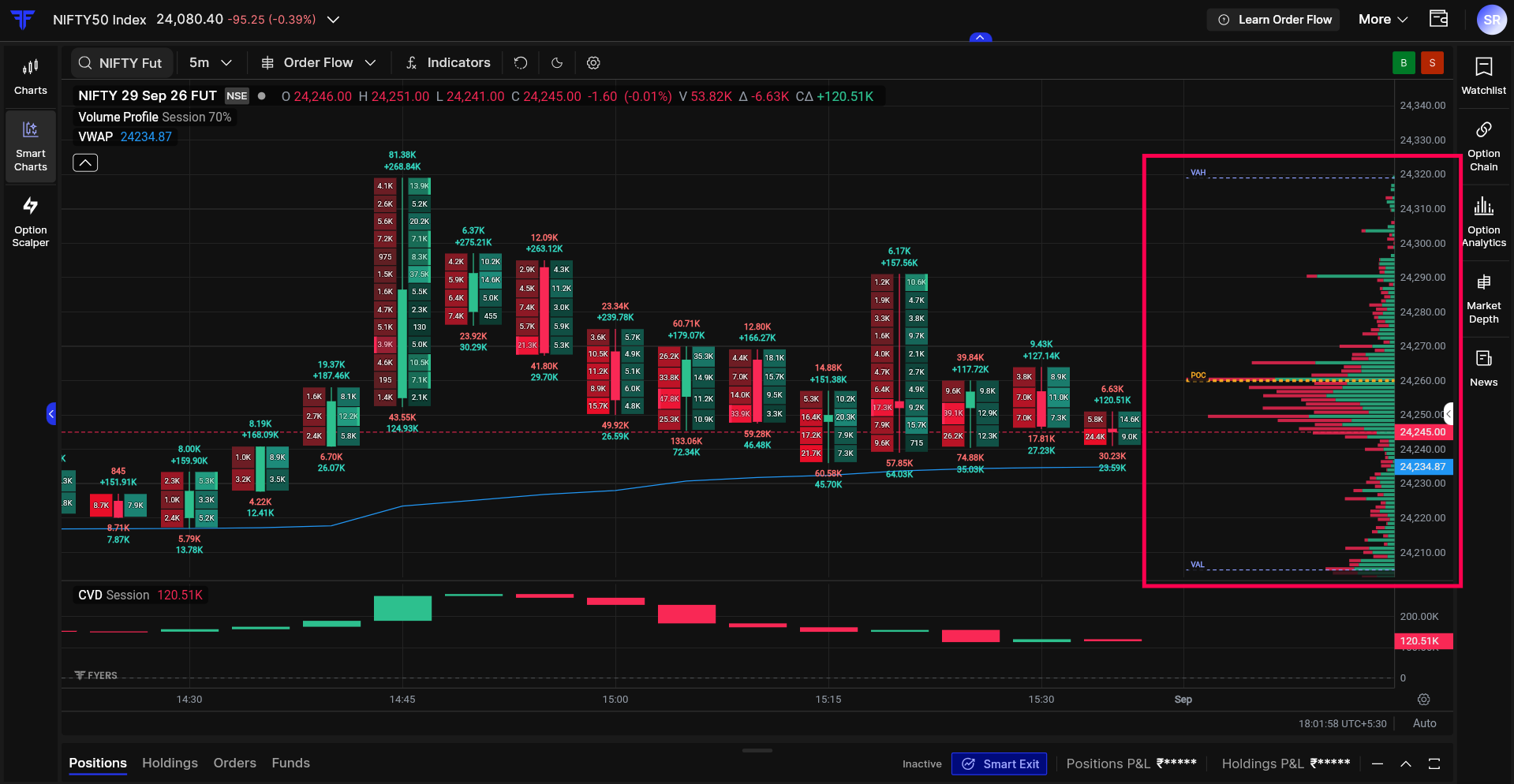

Volume Profile

Volume Profile shows where the most trading took place across a wider price range during the session.

  • Longer bars indicate higher traded volume.
  • Shorter bars indicate lower traded volume.

Volume Profile also displays the following key levels:

  • Point of Control (POC): The price level where the highest volume was traded during the session.
  • Value Area High (VAH): The upper range of the value area.
  • Value Area Low (VAL): The lower range of the value area.

These levels help you identify where trading activity was concentrated during the session.


Volume Weighted Average Price (VWAP)

Volume Weighted Average Price (VWAP) shows the average price at which the symbol has traded during the session, considering both price and volume. It provides additional context about the relationship between the symbol's traded price and volume during the session.

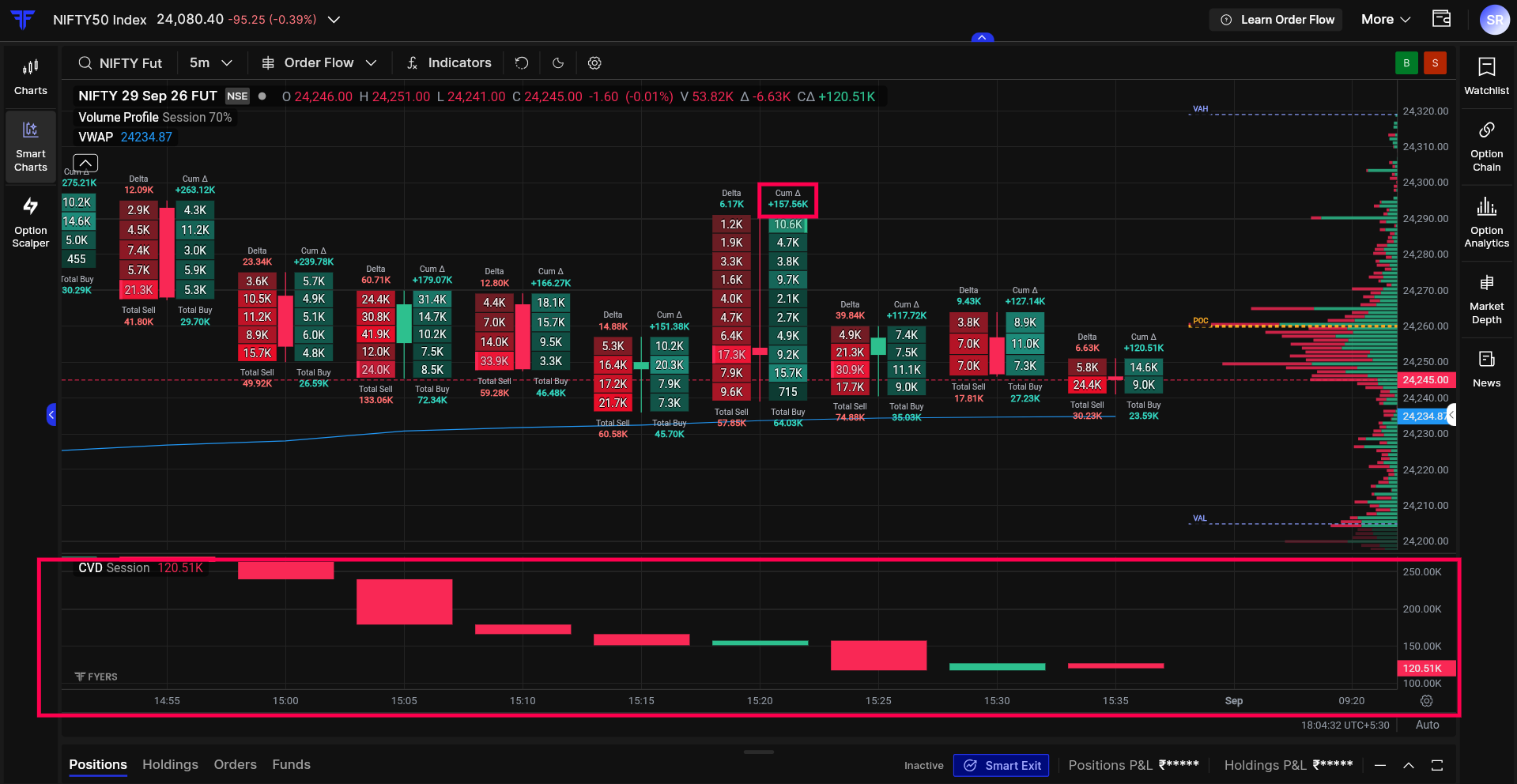

Cumulative Volume Delta (CVD)

Cumulative Volume Delta (CVD) shows the running total of Delta across candles. This helps you see whether buying or selling pressure is building up over time.
For example, if the previous Cumulative Delta is 45,630 and the current Delta is 3,580, the new Cumulative Delta becomes 49,210.

You can view Cumulative Volume Delta in two places:

  • Above each Order Flow candle, where the Cumulative Delta value is displayed.
  • Below the chart, as a separate CVD indicator.

Together, these views help you track how buying or selling pressure develops throughout the session.



Last updated: 31 Aug 2026
